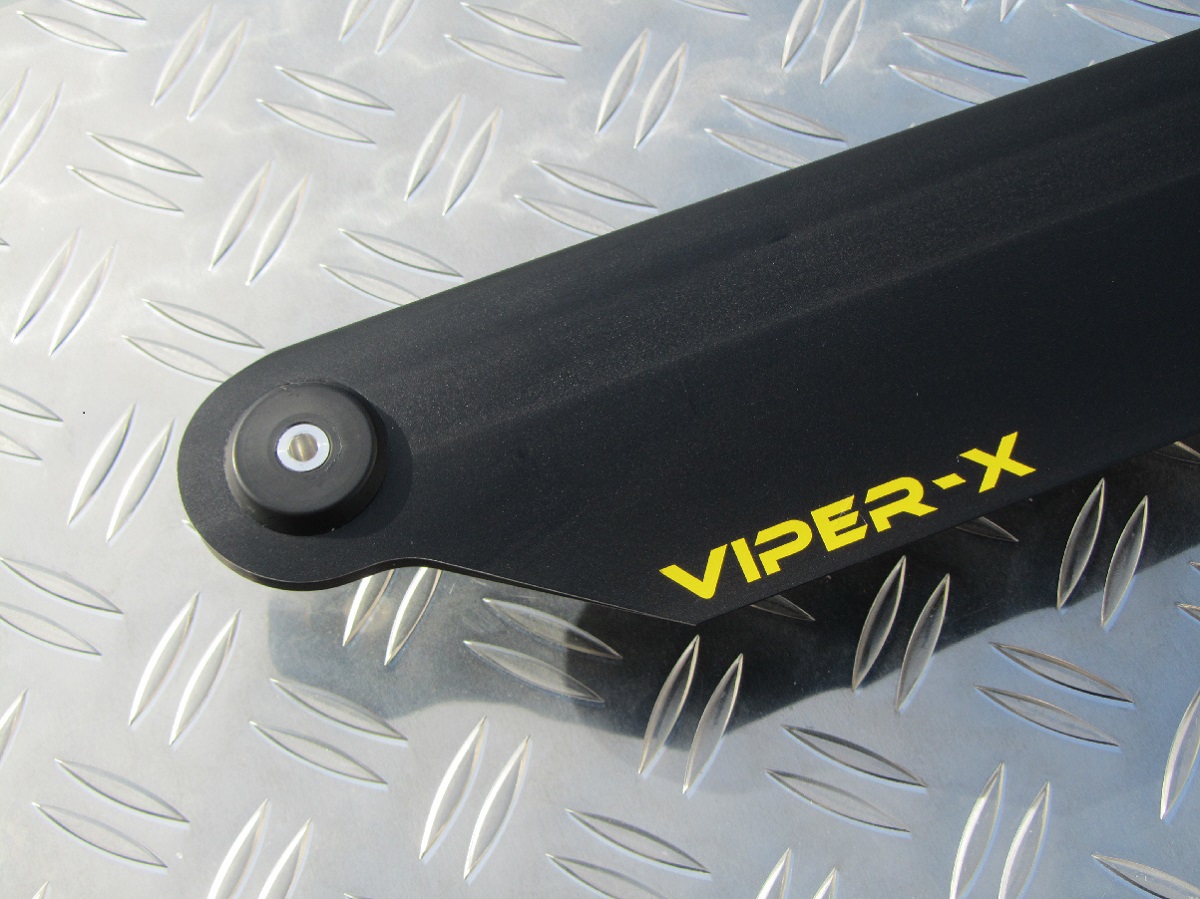

Rotor blades VIPER-X76
  • for 2-blade rotor heads or multi-blade rotor systems
  • for trainer or scale helicopters
  • Blade length up to 1,400 mm, in steps of 10 mm (x)
  • Reflex profile
  • 76 mm width
  • 6.8 mm thick
  • 14 mm or 22 mm blade grip (x)
  • 4 mm, 5 mm or 6 mm bore (x)
  • black anodized
  • left or right rotation (x)
  • balanced
  • max. velocity 125 m / s (see product information)
  • for max. take-off weight of 35 kg approved. For 4- and 5-blade rotor heads up to max. 45 kg
  • not approved for UAV helicopters
  • technical changes reserved
  • especially suitable for operation with turbine-scale helicopters
  • other versions on request
  • (x) = Information required when ordering
  • time to delivery:  1 - 2 weeks

Please also take a look at the stock items, there may be something suitable for you or write to us at:
  • Sollte es Probleme mit dem Shop, bei der Bestellung geben, können Sie uns gerne auch eine Bestellung per E-Mail senden.
  • If you have any problems with the shop when ordering, you can also send us an order by email.
  • Si vous rencontrez des problèmes avec la boutique lors de votre commande, vous pouvez également nous envoyer une commande par email.
VIPER-X76 order
for 2-blade rotors and multi-blade rotor systems - production according to your specifications (Delivery time approx. 1 - 2 weeks)
-> for stock items, please scroll down
2-blade rotor systems, blade length up to 900 mm
Price per pair (= 2 pieces)
Display the data sheet by clicking on the image on the left
289.50 €(MwSt. incl.)
Add
2-blade rotor systems, blade length 901 mm - 1,000 mm
Price per pair (= 2 pieces)
Display the data sheet by clicking on the image on the left
299.50 €(MwSt. incl.)
Add
2-blade rotor systems, blade length 1,001 mm - 1,100 mm
Price per pair (= 2 pieces)
Display the data sheet by clicking on the image on the left
309.50 €(MwSt. incl.)
Add
2-blade rotor systems, blade length 1,101 mm - 1,200 mm
Price per pair (= 2 pieces)
Display the data sheet by clicking on the image on the left
319.50 €(MwSt. incl.)
Add
NEW: 2-blade rotor systems, blade length 1,270 mm, blade depth 80 mm, carbon
Price per pair (= 2 pieces)
Blade grip 22 mm, bore 6 mm, blade length 1,270 mm, blade depth 80 mm, material carbon, top layer white (other colors on request), suitable for model helicopters and helicopter drones with a maximum take-off weight of up to 90 kg.
Price on request
0.00 €(MwSt. incl.)
Add
Multi-blade rotor systems, blade length up to 900 mm
Price per piece
Display the data sheet by clicking on the image on the left
159.50 €(MwSt. incl.)
Add
Multi-blade rotor systems, blade length 901 mm - 1,000 mm
Price per piece
Display the data sheet by clicking on the image on the left
164.50 €(MwSt. incl.)
Add
Multi-blade rotor systems, blade length 1,001 mm - 1,100 mm
Price per piece
Display the data sheet by clicking on the image on the left
169.50 €(MwSt. incl.)
Add
Multi-blade rotor systems, blade length 1,101 mm - 1,200 mm
Price per piece
Display the data sheet by clicking on the image on the left
174.50 €(MwSt. incl.)
Add
Multi-blade rotor systems, blade length 1,201 mm - 1,300 mm
Price per piece
Display the data sheet by clicking on the image on the left
179.50 €(MwSt. incl.)
Add
Multi-blade rotor systems, blade length 1,301 mm - 1,400 mm
Price per piece
Display the data sheet by clicking on the image on the left
184.50 €(MwSt. incl.)
Add
NEW: Multi-blade rotor systems, blade length 1,270 mm, blade depth 80 mm, carbon
Price per piece
Blade grip 22 mm, bore 6 mm, blade length 1,270 mm, blade depth 80 mm, material carbon, top layer white (other colors on request), suitable for model helicopters and helicopter drones with a maximum take-off weight of up to 90 kg.
Price on request
0.00 €(MwSt. incl.)
Add
Blade grip 22 mm
Surcharge for the execution of the blade grip in 22 mm thick
Cost per sheet
5.00 €(MwSt. incl.)
Add
Distance washers 14 mm to 22 mm, set (2 pieces)
Distance washers 14 mm to 22 mm, set (2 pieces),
Material carbon, outer diameter 25 mm, 4 mm thick.
Other dimensions on request
9.50 €(MwSt. incl.)
Add
Distance washers 14 mm to 18 mm, set (2 pieces)
Distance washers 14 mm to 18 mm, set (2 pieces),
Material carbon, outer diameter 25 mm, 2 mm thick.
Other dimensions on request
6.50 €(MwSt. incl.)
Add
Painting of the rotor blades, 2 colors
Painting of the rotor blades, 2-colored on both sides (e.g. white with red stripes, version according to your specifications)
Cost per sheet
98.00 €(MwSt. incl.)
Add
Contour milling of the blade grip according to your specifications
Contour milling of the blade grip in a special design according to your specifications (drawing / sketch or similar). Depending on the effort, 10 to 15 Eur per blade.
The illustration opposite shows an example of a customer order
15.00 €(MwSt. incl.)
Add
VIPER-X76 stock items
some immediately available (or note the information in the text)
2-blade set, blade length 1,020 mm, 14 mm or 22 mm blade grip, 5 mm or 6 mm bore, right (10)
First choice
Available within 5 days, normal price 309.50 Eur
Display the data sheet by clicking on the image on the left
Offer 10
249.50 €(MwSt. incl.)
Add
2-blade set, blade length 1,050 mm, 14 mm blade grip, 6 mm bore, right (15)
First choice
Available immediately, normal price 309.50 Eur
Display the data sheet by clicking on the image on the left
Offer 15
249.50 €(MwSt. incl.)
Add
3-blade set, blade length 1,170 mm, 14 or 22 mm blade handle, 5 mm or 6 mm hole, left (20)
First choice
Available within 5 days, normal price 523.50 Eur
Display the data sheet by clicking on the image on the left
Offer 20
429.50 €(MwSt. incl.)
Add
