Fertigungslizenzen Industrie-Hubschrauber-Drohnen
Auf Anfrage bieten wir Lizenzen für die Herstellung verschiedener Industriehubschrauberdrohnen an. Alle angebotenen Hubschrauberdrohnen wurden in den letzten Jahren von uns entwickelt und stehen nun zum Verkauf. Weitere Informationen finden Sie in den Spezifikationen der einzelnen unten aufgeführten Typen.
Die Leistungsdaten der angebotenen Drohnen sind weitaus höher als die der üblichen Drohnen, so dass Flugzeiten von bis zu 3,5 Stunden oder eine Nutzlast von bis zu 50 kg erreicht werden können (Kraftstoff inkl. Nutzlast in Form von Geräten wie Kamerasystemen), 3D-Scanner, Messgeräte oder z.B. Sprühgeräte für die Land- oder Forstwirtschaft).
Neben der Drohne Koax X-252 bieten wir auch alle Drohnen-Systeme der Dragonfly-Serie (Dragonfly T15, T20, M35 und T50) mit Flettner-Doppelrotor sowie den Dragon-50 V2 (SDO 50 V2) der Swissdrones AG an.
Alle angebotenen Hubschrauberdrohnen sind Industrieversionen, die hinsichtlich minimalem Wartungsaufwand und minimalen Kosten optimiert sind.
Ausgestattet mit einem Flightcontroller können die Drohnen für eine Vielzahl von Aufgaben eingesetzt werden.
Sprechen Sie uns an und profitieren Sie von unserem Know-how!
Alle Dokumente sind auf Anfrage in Deutsch und Englisch erhältlich.

Sehen Sie sich auch das Produktpräsentationsvideo auf Youtube an: https://www.youtube.com/watch?v=JZjkuVt2SK8&t=8s
Koax X-252
Industry helicopter drone mechanics Koax X-252

-> More pictures after clicking on the picture on the left

Technical specifications:
• Coaxial rotor system with 2 x 3 rotor blades, in opposite directions
• Rotor diameter 2.52 m
• Drive by turbine Jakadofsky PRO-X, 11 kW
• Transmission: 3-stage reduction gear, second and third stages with oil bath
• Robust industrial design, low maintenance intervals
• Flight time: depending on the fuel volume, consumption approx. 12 Ltr./h
• Integrated generator for charging the buffer batteries for autopilot and payload. Can also be used as a drive for a safe landing in an emergency
• MTOW: 80 kg
• Max. Speed: approx. 120 km/h

Scope of the manufacturing license are the following data:
• BOM and supplier list
• Drawings: 89 drawings of the individual parts, as PDFs
• 45 exploded drawings for installation, as PDFs
• Step files: 89 pieces of items, and all used standard parts, step file of the whole assembly
• Documents for calculations
• The drawings and views of the components shown an example of the offered data
• Exclusivity on request
• Data will be made available via download link or on CD
• Not included are 3D data of the fuselage (on request)
Change requests in the construction are possible by means of hourly billing. Additional data on request.
Click on the image opposite for more photos. The illustrations also show older versions. For sale is the latest version of the helicopter mechanics with the specifications described above. The photos show examples of the finished drone and mounted drone mechanics.
The retail price of a finished drone is approximately $ 100,000 to $ 120,000. An unlimited number of drones can be built.
Price quotation with 19% German VAT
41,650.00 €(MwSt. Inkl.)
Hinzufügen

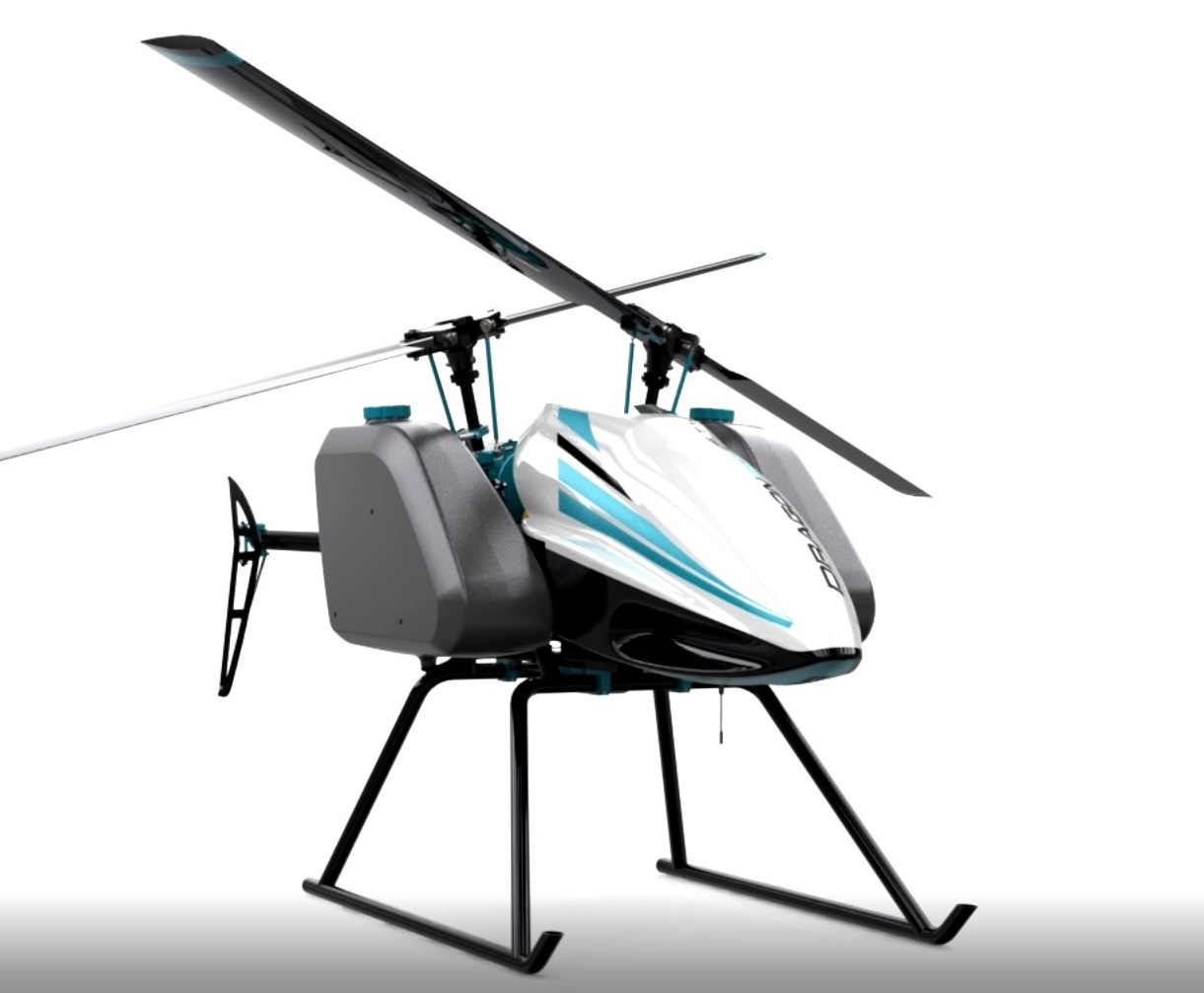

Dragonfly T15
Industry helicopter drone Dragonfly T15

-> More pictures after clicking on the picture on the left

Technical specifications:
• Flettner double rotor system with 2 x 2 rotor blades
• Rotor diameter 2.45 m
• Dimensions: 1.8m x 0.54m x 0.7m
• Drive by turbine Jakadofsky PRO-6000, 6 kW
• Transmission: 3-stage reduction gear, third stages with oil bath
• Robust industrial design, low maintenance intervals
• Flight time: 1,5 h, consumption approx. 12 Ltr./h
• Weight: 18 kg
• MTOW: 40 kg
• Max. Speed: approx. 100 km/h

Scope of the manufacturing license are the following data:
• BOM and supplier list
• Drawings: 90 drawings of the individual parts, as PDFs
• Step files: 90 pieces of items, and all used standard parts, step file of the whole assembly
• 3D-data of the canopy
• Documents for approval
• The drawings and views of the components shown an example of the offered data
• Exclusivity on request
• Data will be made available via download link or on CD
Change requests in the construction are possible by means of hourly billing. Additional data on request.
The photos show examples of the finished drone and mounted drone mechanics.
The retail price of a finished drone is approximately $ 45,000 to $ 100,000. An unlimited number of drones can be built.
Price quotation with 19% German VAT
41,650.00 €(MwSt. Inkl.)
Hinzufügen

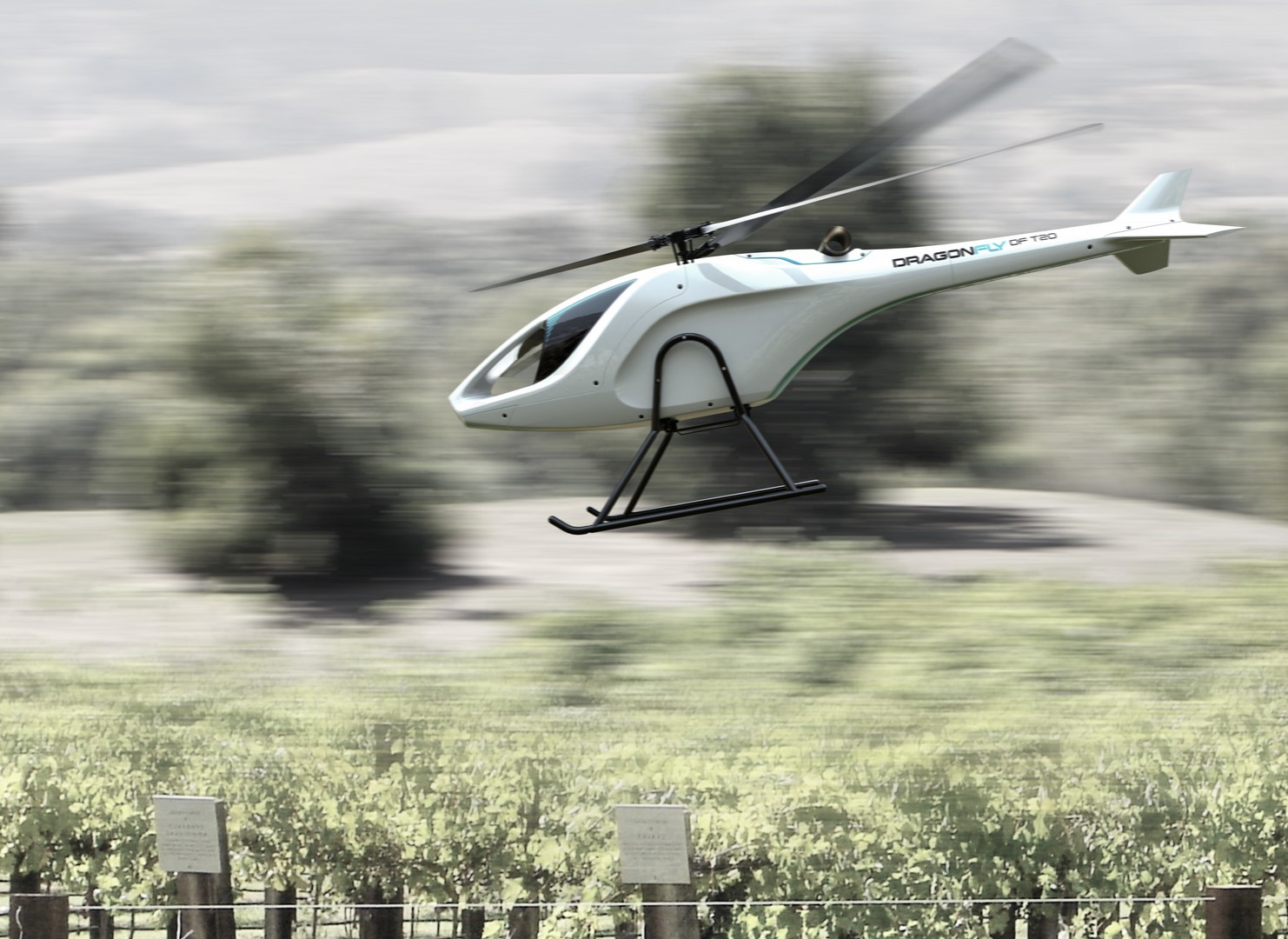

Dragonfly T20
Industry helicopter drone Dragonfly T20

-> More pictures after clicking on the picture on the left

Technical specifications:
• Flettner double rotor system with 2 x 2 rotor blades
• Rotor diameter 2.45 m
• Dimensions: 2.3m x 0.54m x 0.7m
• Drive by turbine Jakadofsky PRO-6000, 6 kW
• Transmission: 3-stage reduction gear, third stages with oil bath
• Robust industrial design, low maintenance intervals
• Flight time: 1 h, consumption approx. 12 Ltr./h
• Weight: 20 kg
• MTOW: 40 kg
• Max. Speed: approx. 100 km/h

Scope of the manufacturing license are the following data:
• BOM and supplier list
• Drawings: 90 drawings of the individual parts, as PDFs
• Step files: 90 pieces of items, and all used standard parts, step file of the whole assembly
• 3D-data of the fuselage
• Documents for approval
• The drawings and views of the components shown an example of the offered data
• Exclusivity on request
• Data will be made available via download link or on CD
Change requests in the construction are possible by means of hourly billing. Additional data on request.
The photos show examples of the finished drone and mounted drone mechanics.
The retail price of a finished drone is approximately $ 65,000 to $ 120,000. An unlimited number of drones can be built.
Price quotation with 19% German VAT
53,550.00 €(MwSt. Inkl.)
Hinzufügen
Dragonfly M35
Industry helicopter drone Dragonfly M35

-> More pictures by clicking on the view

Technical specifications:
• Flettner double rotor system with 2 x 2 rotor blades
• Rotor diameter 2.8 m
• Dimensions: 2.6m x 0.6m x 0.9m
• Drive by flat twin engine, 14.5kW, with double ignition system, generator and on-board-starter system
• Transmission: 2-stage reduction gear, second stages with oil bath(!)
• Robust industrial design, low maintenance intervals
• Flight time: 1 h, with external tanks 3 h, consumption approx. 6 Ltr./h
• Generator power: 14 V / 400 W (alternativ 28 V / 900 W)
• Weight: 40kg
• MTOW: 75 kg
• Max. Speed: approx. 100 km/h

Scope of the manufacturing license are the following data:
• BOM and supplier list
• Drawings: 147 drawings of the individual parts, as PDFs
• Step files: 181 pieces of items, and all used standard parts, step file of the whole assembly and suassembly
• dxf-datas: 36 files
• 3D-data of the fuselage
• Documents for approval
• The drawings and views of the components shown an example of the offered data
• Exclusivity on request
• Data will be made available via download link or on CD
Change requests in the construction are possible by means of hourly billing. Additional data on request.
The photos show examples of the finished drone and mounted drone mechanics.
The retail price of a finished drone is approximately $ 165,000 to $ 200,000. An unlimited number of drones can be built.
Price quotation with 19% German VAT
65,450.00 €(MwSt. Inkl.)
Hinzufügen

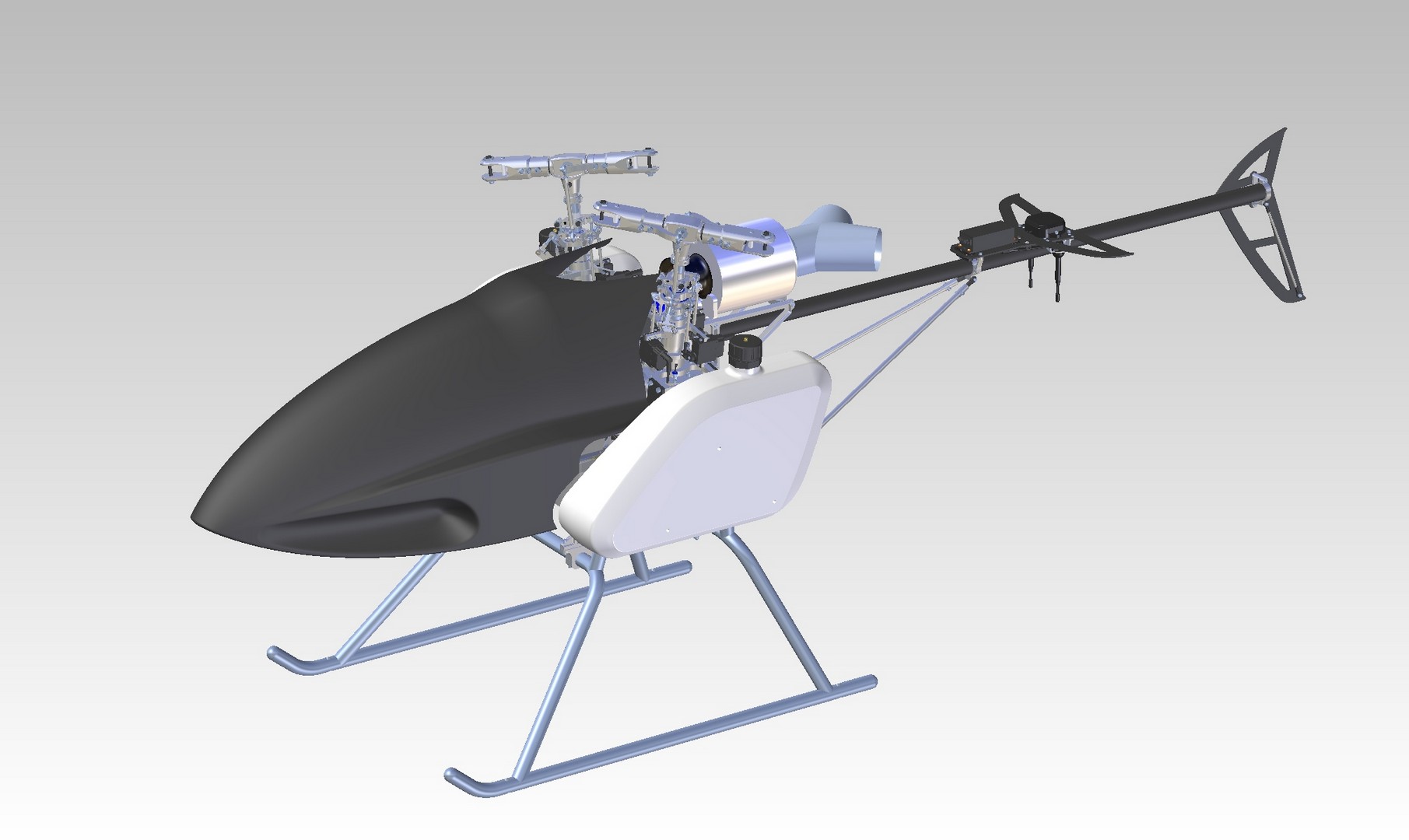

Dragonfly M35, Trainer-Version
Industry helicopter drone Dragonfly M35, Trainer-Version
-> corresponds to the M35, but without a closed fuselage
-> licensing without the spraying system shown

-> More pictures after clicking on the picture on the left

Technical specifications:
• Flettner double rotor system with 2 x 2 rotor blades
• Rotor diameter 2.8 m
• Dimensions: 2.6m x 0.6m x 0.9m
• Drive by flat twin engine, 14.5kW, with double ignition system, generator and on-board-starter system
• Transmission: 2-stage reduction gear, second stage with oil bath
• Robust industrial design, low maintenance intervals
• Flight time: 1 h, with external tanks 3 h, consumption approx. 6 ltr./h
• Generator power: 14 V / 400 W (alternativ 28 V / 900 W)
• Weight: 38 kg
• MTOW: 75 kg
• Max. Speed: approx. 100 km/h

Scope of the manufacturing license are the following data:
• BOM and supplier list
• Drawings: 140 drawings of the individual parts, as PDFs
• Step files: 140 pieces of items, and all used standard parts, step file of the whole assembly
• 3D-data of the canopy
• Spraying system is not part of the offer, price on request
• Documents for approval
• The drawings and views of the components, shown an example of the offered data
• Exclusivity on request
• Data will be made available via download linkor on CD
Change requests in the construction are possible by means of hourly billing. Additional data on request.
The photos show examples of the finished drone and mounted drone mechanics.
The retail price of a finished drone is approximately $ 165,000 to $ 200,000. An unlimited number of drones can be built.
Price quotation with 19% German VAT
59,500.00 €(MwSt. Inkl.)
Hinzufügen

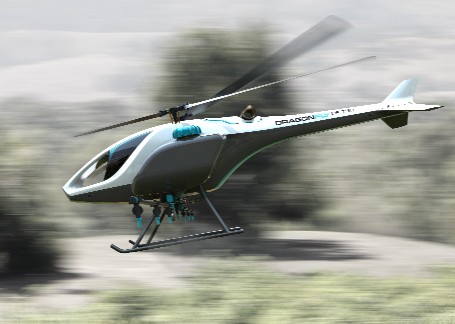

Dragonfly T50
Industry helicopter drone Dragonfly T50

-> More pictures after clicking on the picture on the left

Technical specifications:
• Flettner double rotor system with 2 x 2 rotor blades
• Rotor diameter 2.8 m
• Dimensions: 2.6m x 0.6m x 0.9m
• Drive by turbine Jakadofsky PRO-X, 11 kW
• Transmission: 3-stage reduction gear, all stages with oil bath(!)
• Robust industrial design, low maintenance intervals
• Flight time: 1 h, with external tanks 3 h, consumption approx. 12 Ltr./h
• Generator power: 14 V / 400 W (alternativ 28 V / 900 W)
• Weight: 42kg
• MTOW: 90 kg
• Max. Speed: approx. 100 km/h

Scope of the manufacturing license are the following data:
• BOM and supplier list
• Drawings: 152 drawings of the individual parts, as PDFs
• Step files: 214 pieces of items, and all used standard parts, step file of the whole assembly and subassembly
• dxf-datas: 20
• 3D-data of the fuselage
• Documents for approval
• The drawings and views of the components shown an example of the offered data
• Exclusivity on request
• Data will be made available via download link or on CD
Change requests in the construction are possible by means of hourly billing. Additional data on request.
The photos show examples of the finished drone and mounted drone mechanics.
The retail price of a finished drone is approximately $ 165,000 to $ 200,000. An unlimited number of drones can be built.
Price quotation with 19% German VAT
77,350.00 €(MwSt. Inkl.)
Hinzufügen
Dragon-50 V2, SwissDrones AG
Industry helicopter drone Dragon-50 V2 / SDO 50 V2

-> More pictures after clicking on the picture on the left

Technical specifications:
• Flettner double rotor system with 2 x 2 rotor blades
• Rotor diameter 2.8 m
• Dimensions: 2.3m x 0.7m x 0.9m
• Drive by turbine Jakadofsky PRO-X, 11 kW
• Transmission: 3-stage reduction gear, third stage with oil bath
• Robust industrial design, low maintenance intervals
• Flight time: 1 h, with external tanks 2,5 h, consumption approx. 12 Ltr./h
• Generator power: 14 V / 400 W (alternativ 28 V / 900 W)
• Weight: 40 kg
• MTOW: 87 kg
• Max. Speed: approx. 72 km/h

Scope of the manufacturing license are the following data:
• BOM and supplier list
• Drawings: 120 drawings of the individual parts, as PDFs
• Step files: 120 pieces of items, and all used standard parts, step file of the whole assembly
• Documents for approval
• 3D-data of the fuselage
• Exclusivity on request
• The drawings and views of the components shown an example of the offered data
• Data will be made available via download link or on CD
Change requests in the construction are possible by means of hourly billing. Additional data on request.
The photos show examples of the finished drone and mounted drone mechanics.
The retail price of a finished drone is approximately $ 165,000 to $ 200,000. An unlimited number of drones can be built.
Price quotation with 19% German VAT
65,450.00 €(MwSt. Inkl.)
Hinzufügen

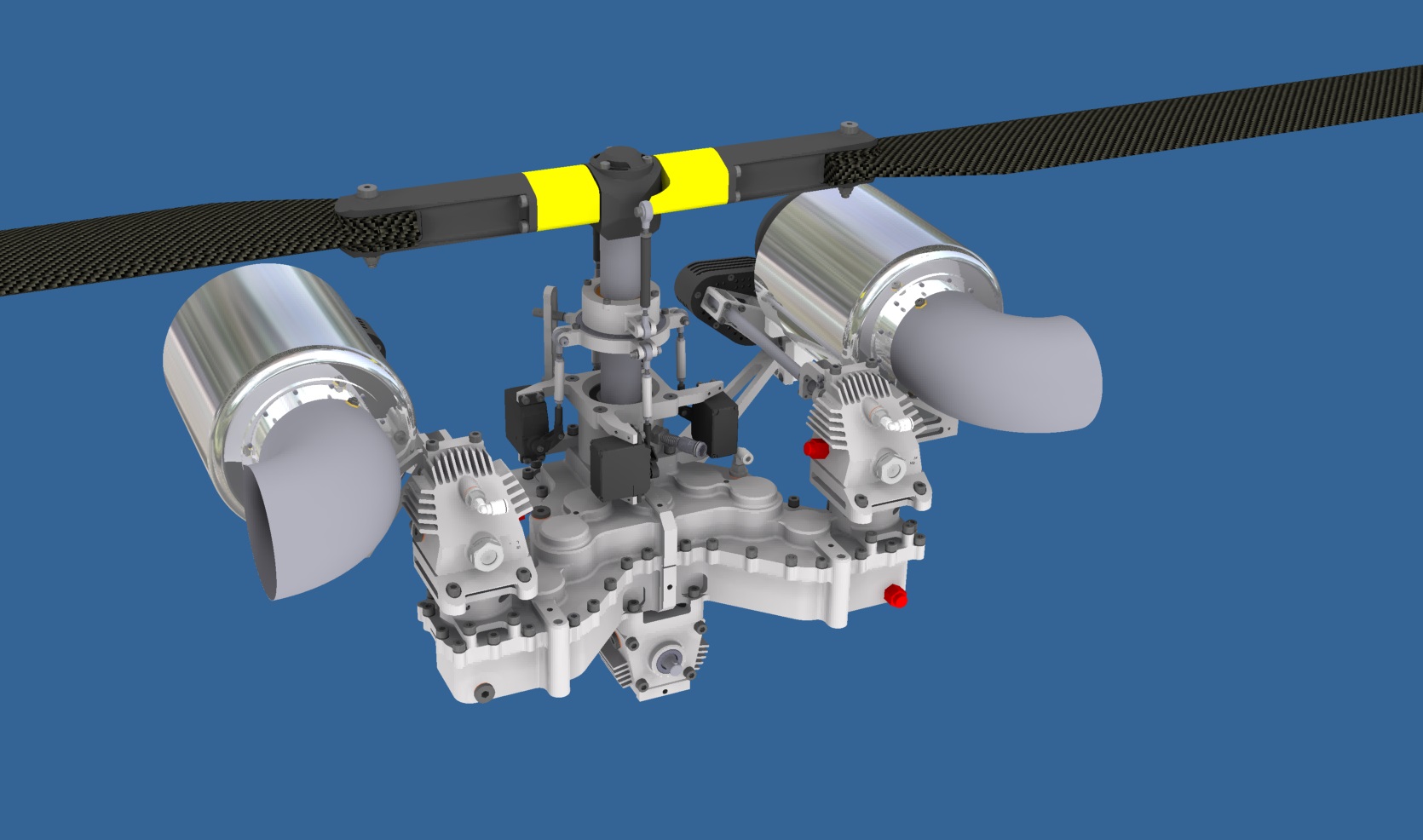

Dragonfly TT70
Industry helicopter drone mechanics Dragonfly TT70

-> More pictures after clicking on the picture on the left

Technical specifications:
• Standard rotor system with, with 3-blade main rotor and 2-blade tail rotor
• Rotor diameter 3.5 m
• Drive by two turbine Jakadofsky PRO-X, 11 kW
• Transmission: multi-stage reduction gear, running in oil bath
• Robust industrial design, low maintenance intervals
• Flight time: depending on the fuel volume, consumption approx. 2 x 12 Ltr./h
• MTOW: 150 kg
• Max. Speed: approx. 120 km/h

Scope of the manufacturing license are the following data:
• BOM and supplier list
• Drawings, main gear: 66 drawings of the individual parts and assemblies, as PDFs
• Drawings, 3-blade main rotor and 2-blade tail rotor: drawings of the individual parts and assemblies, as PDFs
• Step files, 3-blade main rotor and 2-blade tail rotor: all pieces of items, and all used standard parts, step file of the whole assembly
• The drawings and views of the components shown an example of the offered data
• Exclusivity on request
• Data will be made available via download link or on CD
• Not included are 3D data of the fuselage
Change requests in the construction are possible by means of hourly billing. Additional data on request.
Click on the image opposite for more photos. The illustrations also show older versions. For sale is the latest version of the helicopter mechanics with the specifications described above. The photos show examples of the finished drone and mounted drone mechanics.
The retail price of a finished drone is approximately $ 150,000 to $ 200,000. An unlimited number of drones can be built.
Price quotation with 19% German VAT
65,450.00 €(MwSt. Inkl.)
Hinzufügen
Spraying system, suitable for Dragonfly M35, M35-Trainer and T50, Dragon-50 V2
Spraying system

-> More pictures after clicking on the picture on the left

Technical specifications:
• suitable for Dragonfly M35, M35-Trainer and T50, Dragon-50 V2
• Spraying system for the application of sprays in vineyards or on fields in agriculture
• width of the spray bar: 2.8 m
• Spray width: ca. 4.5 m
• Tank volume: 2 x 22 Ltr. (or 2 x 10 Ltr.)
• Version with 7 nozzles
• Electric pump, adjustable for different application rates
• pump head in industrial version
• Spray arms can be folded forward or backward
• Weight: kg
-> The design of the spray width and number of nozzles can be adjusted according to your specifications

Scope of the manufacturing license are the following data:
• BOM and supplier list
• Drawings: xx drawings of the individual parts, as PDFs
• Step files: xx pieces of items, and all used standard parts, step file of the whole assembly
• Exclusivity on request
• The drawings and views of the components shown an example of the offered data
• Data will be made available via download link or on CD
Change requests in the construction are possible by means of hourly billing. Additional data on request.

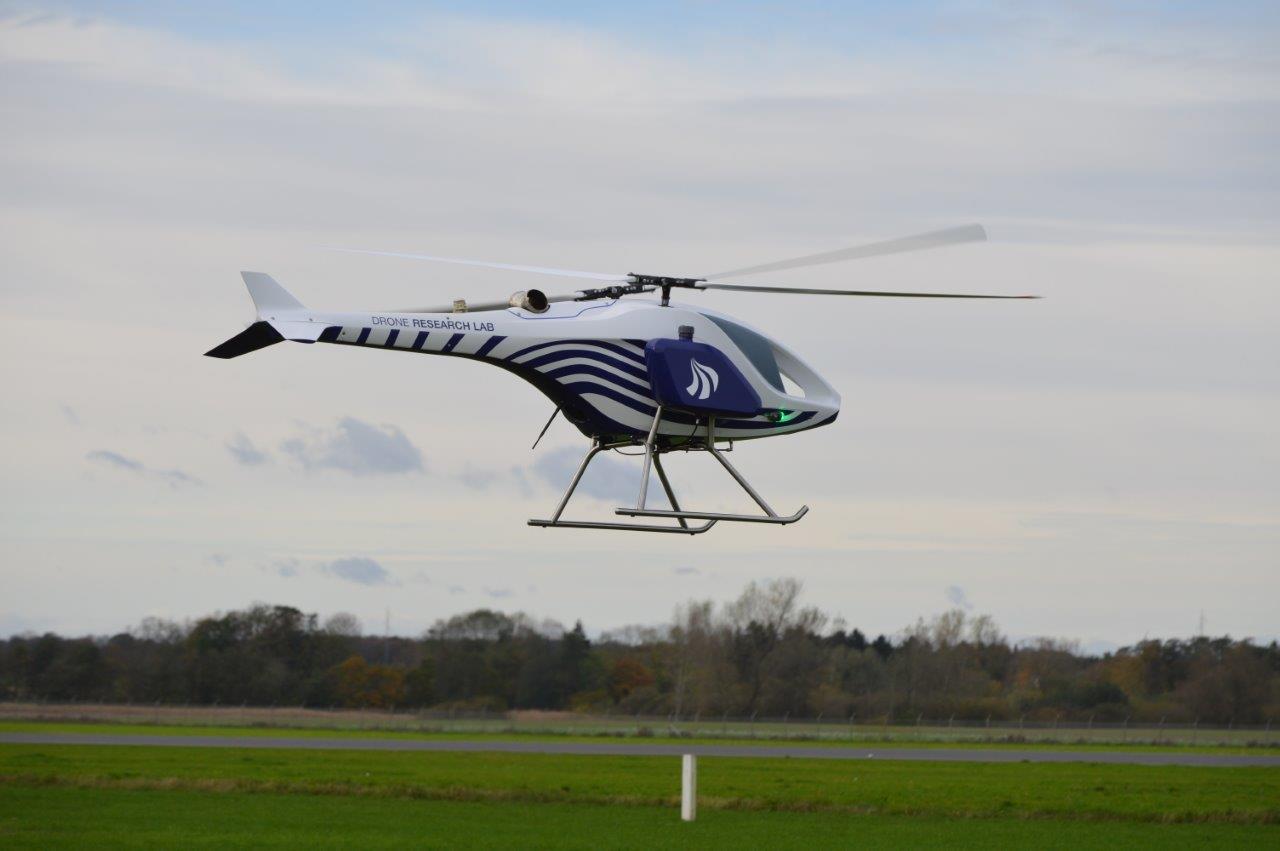

The photos show examples of the complete drone with the spraying system.
An unlimited number of spraying systems can be built.
Price quotation with 19% German VAT
5,950.00 €(MwSt. Inkl.)
Hinzufügen
Nachdruck nur mit Genehmigung des Autors. Alle Angaben ohne Gewähr.
Zurück zum Seiteninhalt
